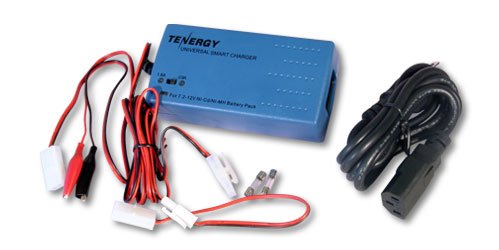

Accessories Included * 1 standard Tamiya Female connector and Fuse house with the smart battery charger. * 1 connector adaptor from standard Male Tamiya to Mini Female. * 1 set of clip adaptor with Male Tamiya connector on one end. * 2 additional fusesSmart Charger Specification * FOR 6V-12V NI-MH/NI-CD BATTERY PACK 6-10PCS BATTERY * Input: AC100-240V * Output: 6-12V 0.9or1.8AOperation Instruction * Connect battery pack to output connector and plug AC power source. * Make sure battery polarity is connected correctly (Red wire is positive) * Charger will detect battery voltage automatically, Red LED will be on during charging * When battery is fully charged, current will reduce to trickle charging at 50mA,Green LED will be on * Battery will be charged at 0.9A or 1.8A constant current, * Approximate Charging time is about 1.5hrs for 3000mAh battery,1hr for 1800mAh battery. * The charger is designed for faster charging NiCd and NiMH battery packs from 6 to 12V for RC car/Air and Air soft gun. * Don't charge battery packs with voltage less than 6V or voltage greater than 12V and capacity smaller than1100mAh. * Battery pack must be made by high drain current cell. * Please contact your seller for instruction. Mfg is not responsible for any damage and consequent damage by Misusage.Caution * The charger is designed for indoor use only. Don't leave the charger unattended during charging. * The Charger should be positioned horizontally and work in well ventilated condition, avoid water and keep it away from flammable explosive goods. * Don't cover the charger when charging, ambient temperature shall not be more than 40oC * Don't touch the plug. * Don't leave the abtteries and chargers on wood surface or carpet. * Cut off the power supply before connect or disconnect the charger with batteries. * Don't try to disassemble the charger, High voltage inside, danger!
- Best Charger for charging all RC Car, RC air and Airsoft battery packs 7.2V, 8.4V, 9.6V and 12V.
- Fast charger with current switch to select either, 0.9A and 1.8A. Deliver full charge within 1 - 2 hours.
- Worldwide usage with 120-240V AC.
- Use pulse and negative pulse technology to avoid battery overheating during fast charging, optimized for battery pack's cycle life.
- Safety protection fuse for over current, short circuit & reverse polarity protection
*** Product Information and Prices Stored: Mar 28, 2012 05:06:41 ***
